產物概況

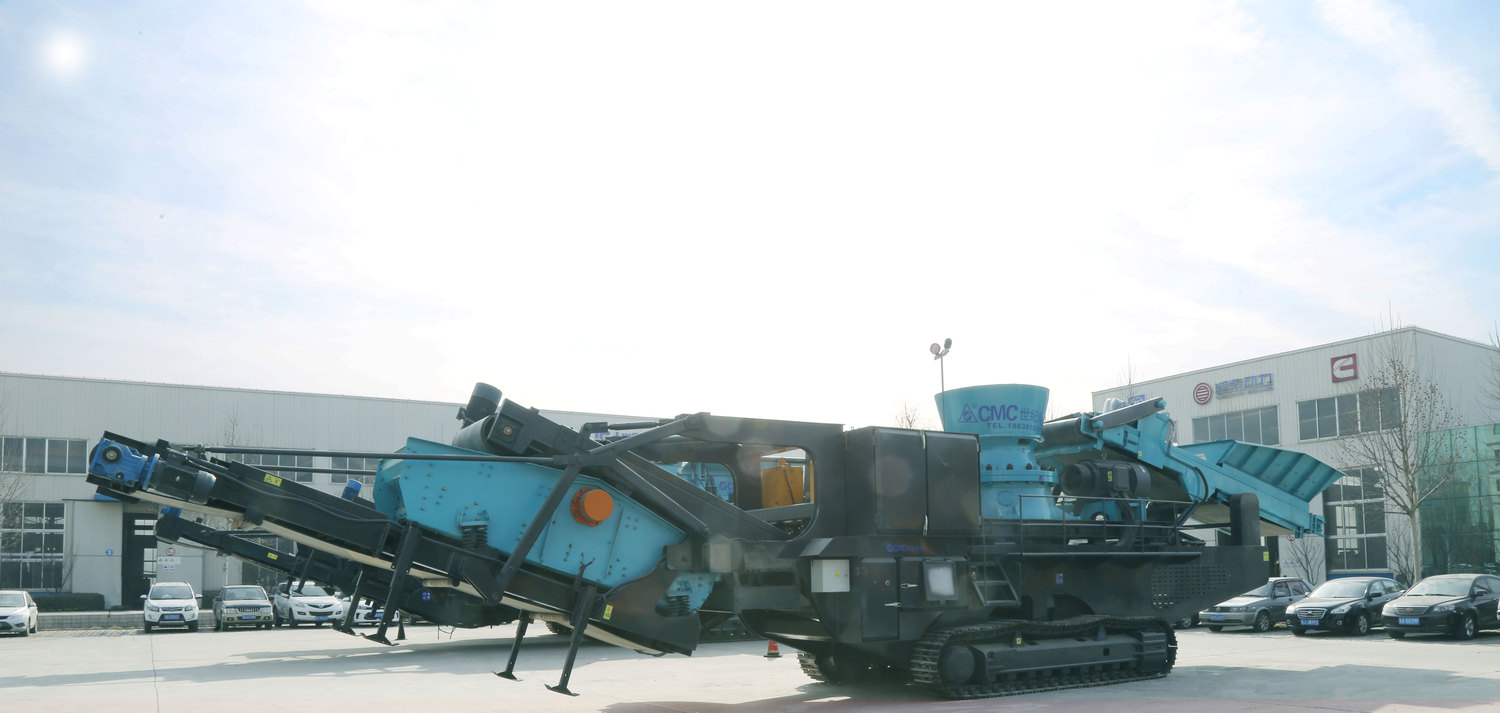

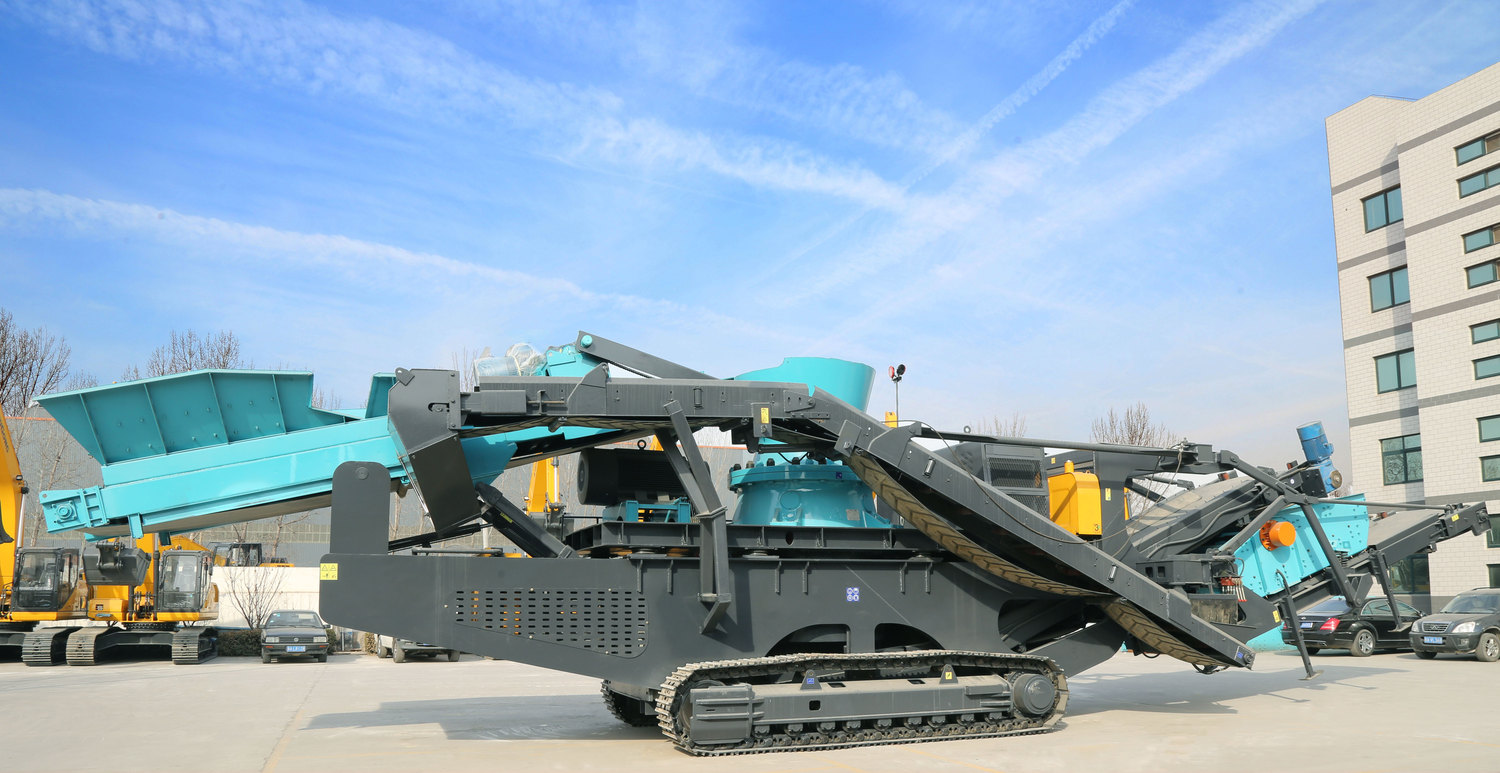

LTY圓錐式挪動破裂站
產物概況

上風和特色

Advantages and features:

1、曲線破裂腔:按照物料層壓破裂道理和腔壁磨損特征,腔型設想為曲線,能確保破裂機產量大、產物品質高、磨損本錢低的方針;

2、主破裂機接納主動節制體系,具備全主動破裂工藝節制、一鍵式主動啟動和進步前輩的毛病診斷功效,能完成破裂功課的過載或過鐵掩護、襯板磨損主動彌補等功效;

3、可調偏疼距:主破裂機偏疼襯套、偏疼套二者組合,經由過程扭轉偏疼襯套可等閑完成多個偏疼距設定,以順應差別礦石和工礦的請求;

4、進步前輩的液壓光滑體系:主破裂機光滑體系、液壓體系模塊化設想,各自自力運轉,可完成油溫、流量、壓力、功率、非常電源等掩護;

5、運輸便利:該型挪動破裂站因此中分量和形狀設想公道,可經由過程遙控模塊高低平板拖車,完成遠間隔運輸,輕松轉場功課;

6、利用市場搶先的AC100TM主動化節制體系,最大水平上削減噎機環境,進步進料效力。

1. Curved crushing cavity:on the basis of material laminated crushing principle and characteristics of cavity wall wears,cavity is curved,to ensure higher crushing output,high product quality and low wear cost;

2. Main crusher adopts the automatic control system which could fulfill automatic crushing process control,one button automatic start,advanced fault diagnosis function,overload protection,automatic compensation function of lining board abrasion;

3. Adjustable eccentricity:eccentric bushing plus eccentric sleeve,by adjusting eccentric bushing can finish various eccentricity settings easliy,to meet the requirements of different ores and mining.

4. Advanced hydraulic and lubrication system:with main crusher lubricating system and modular design of hydraulic system,operated independently,can ensure temperature,liow,pressure,poewr,and other abnormal power supply protection.

5. Convenjient transportation:reasonable weinght and shape design,the mobile crusher,through module remote control to get up and down flat bed trailer,fulfill long-distance transport and easy transition.

6. Use the market leading AC100TM automation control system to minimize the situation of choking and improve feed efficiency.

裝備利用:

Application:

1、普遍利用于加工物料的中碎和零碎用處;

2、各種礦山巖石的破裂;

3、瀝青及混凝土攪拌站內的骨料破裂;

4、河卵石及別的行業的破裂。

1. Widely used in medium crushing and fine crushing of processing materials;

2. All kinds of mine rock crushing;

3. Asphalt crushing and aggregate crushing of concrete mixer;

4. River gravel crushing and other industries.


圓錐式破裂機截面圖

Cone Crusher Sectional View

LTY圓錐式挪動破裂站手藝參數LTY Cone Mobile Crusher Station Specification

裝備型號 Equipment Model

LTY430

LTY440

破裂機 Crusher

型號 Model

HC430

HC440

最猛進料粒度 Max Feed Size (mm)


190

215

出料口調劑規模 Adjustable Range of Outlet (mm)

6-38

8-44

處置才能 Capacity (t/h)

37-219

68-413

分量 Weight (t)

9.2

14.3

機電功率 Output (kw)

132

220

給料機 Feeding Machine

型號 Model

ZSW590*120

ZSW600*130

保送帶 Conveyor Belt

保送帶尺寸 Conveyor Size (mm)

B1000*9800

B1200*9800

履帶 Track

履帶帶寬 Track Width (mm)

500

500

最大行走速率 Max Walking Speed (km/h)

1.2

1.2

履帶長度 Track Length (mm)

4000

4000

履帶軌距 Track Gauge (mm)

3000

3000

行走發念頭 Engine

功率 Power (kw)

92

92

選裝件 Optional Spares

加大料斗 Large Size Material Hopper

?

?

給料機底板 Feeder Floor Plate

?

?

料斗襯板 Hopper Liner

?

?

皮帶護板 Belt Guard Plate

?

?

無線遙控器 Remote Controller

?

?

防塵裝配 Dustproof Device

?

?

高壓水噴淋管 High Pressure Water Spray Pipe

?

?

燃油泵 Fuel Pump

?

?
