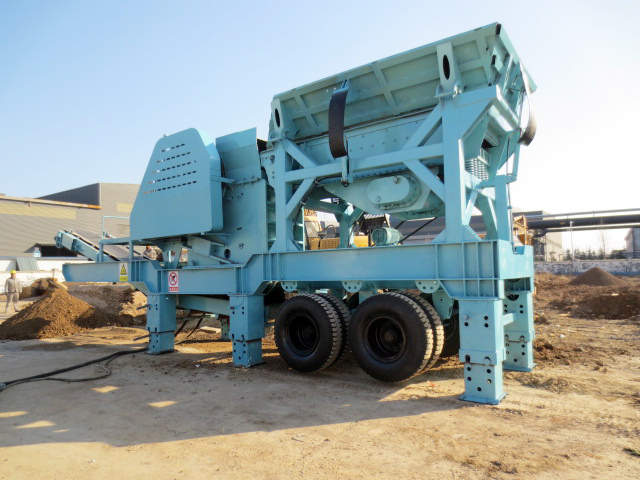

TME顎式輪胎式挪動破裂站
產物概況

產物概述 Product Description

1.接納船型鋼架布局,車體底盤低、分量輕、體積獲得公道節制。接納埋沒式牽引架,收放自若,運輸轉彎半徑小。

1. The use of steel frame structure, low body chassis, light weight, the volume is properly controlled. Using a hidden tractor, retractable, small turning radius of transport.

2.喂料護板液壓起落,便利裝卸。牢固便攜,靠得住。

2. Feeding guard plate hydraulic lifting, easy loading and unloading. Fixed portable, reliable.

3.喂料護板接納分級式雙層布局,為護板延展加寬供給了先決前提。

3. The feed baffle has a double-deck structure that provides a prerequisite for widening the guard plate.

4.整車節制柜中配有高科技液晶顯現觸摸屏,PLC節制體系,液晶觸摸屏具有人機對話功效,使其具有密鑰啟動、誤操縱提醒及掩護、電器節制操縱,毛病及寧靜提醒等功效。便利、高效、寧靜。

4. The vehicle control cabinet is equipped with high-tech LCD touch screen, PLC control system, LCD touch screen with man-machine dialogue function, so that it has a key to start, misuse tips and protection, electrical control operations, faults and safety tips and other functions. Convenient, efficient and safe.

5.給料機蓖條預分細料,搜集料倉接納分料艙門主動化設想,流料可隨側出皮帶機流出,也可隨主料保送。

5. Grate material feeder pre-sub-fines, collecting silo hopper door automation design, the flow of material with the side out of the belt conveyor can also be transported with the main material.

6.皮帶保送機可凹凸調理、翻轉可折疊。

6. Belt conveyor height adjustment, flip foldable.

7.支腿接納全液壓起落體例,操縱便利矯捷,機能靠得住。

7. Outrigger hydraulic lifting method, convenient and flexible operation, reliable performance.

8.全體流線型車身布局設想,金屬漆噴涂,力學與美學的完善連系。

8. The overall sleek body structure design, metal paint spraying, the perfect combination of mechanics and aesthetics.

9、利用市場搶先的IC主動化節制體系。

9. Use the market leading IC automation control system.


手藝參數 Specification


TME69

TME710

TME912

TMEW86

TME110

運輸長度 Length(mm)

11900

13100

14600

14600

15400

運輸寬度 Width(mm)

2550

2550

2950

2550

2950

運輸高度 Height(mm)

3650

4450

4500

4500

4500

最大長度 Max Length(mm)

12100

13300

14600

14600

15400

最大寬度 Max Width(mm)

2900

2950

3300

3300

3300

最大高度 Max Height(mm)

4060

4810

5300

5300

5700

分量 Weight(t)

27

39

70

65

92

輪胎設置裝備擺設 Tyre Configuration

并裝雙軸

Dualaxial

并裝雙軸

Dualaxial

并裝雙軸

Dualaxial

并裝雙軸

Dualaxial

并裝雙軸

Dualaxial

破裂機型號 Crusher Model

PE600*900

PE750*1060

PE900*1200

PEW860

PEW1100

最猛進料 Max Feed(mm)

480

630

750

730

940

出料口調劑規模 Outlet Adjustment Range(mm)

65-160

80-140

100-200

75-225

150-275

處置量 Capacity(t/h)

90-180

110-320

220-450

150-500

300-650

給料機型號 Feeding Machine

ZSW400-96

ZSW590-120

ZSW600-130

ZSW600-130

ZSW600-150

主皮帶機型號 Main belt Machine Model

B800*8.5M

B1000*9M

B1200*9.5M

B1200*9.5M

B1200*9.5M

側出皮帶機型號(選配) Side Belt Model (optional)

B450*3M

B500*3.5M

B650*4M

B650*4M

B650*4M

除鐵器型號(選配) Separator type (optional)

RCYD(C)-8

RCYD(C)-10

RCYD(C)-12

RCYD(C)-12

RCYD(C)-12
