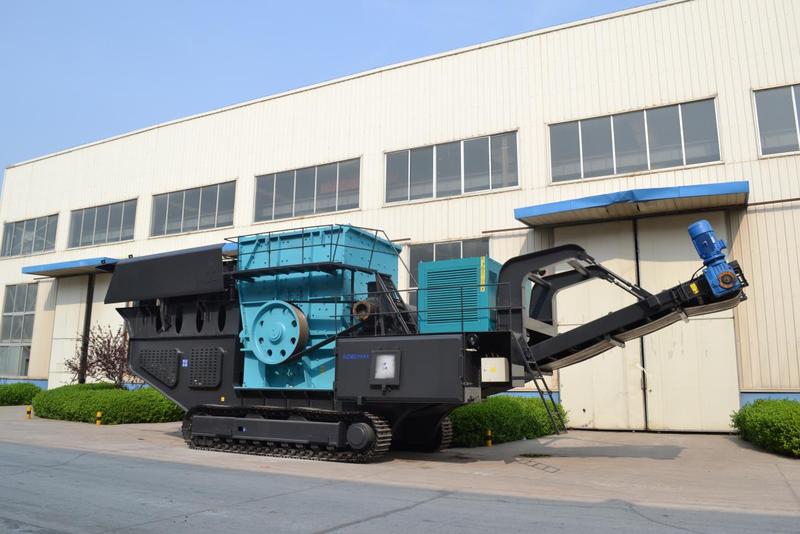

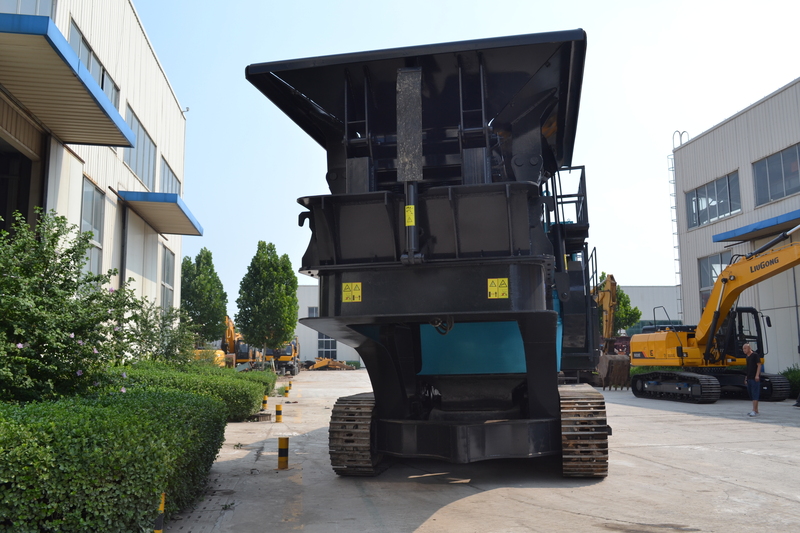

LTC錘式挪動破裂站
產物概況

錘式破裂機任務道理

Hammer Mobile Crusher Station Operation Mechanism:

其首要是靠沖擊感化來破裂物料。錘式破裂機的機電動員轉子在破裂腔內高速扭轉,物料自上部給料口給入破裂腔內,受高速活動的錘子的沖擊、沖擊、剪切、研磨感化而破壞。在轉子下部,設有篩板、破壞物猜中小于篩孔尺寸的粒級經由過程篩板解除,大孔篩孔尺寸的粗粒級阻留在篩板上持續遭到錘子的沖擊和研磨。

Its main impact is to crush the material. Hammer crusher motor driven rotor in the crushing cavity high-speed rotation, the material from the upper feed port into the crushing cavity, by the high-speed movement of the hammer blow, impact, shear, grinding and smashing. In the lower part of the rotor, a sieve plate is provided. Particles smaller than the size of the sieve in the crushed material are excluded by the sieve plate. The coarse-grained sieve size of the large-hole sieve remains on the sieve plate and continues to be struck and ground by the hammer.

裝備利用:

Application:

首要用于礦山、修建、鐵路、公路、水電、橋梁等活動砂石骨料的破裂加任務業。特別順應園地狹小、山路高卑的任務情況功課。該破裂站任務效力高,單機功課可完成對大塊物料的一次性加工成制品夾雜料;也可按照現場任務須要,在該破裂站主保送帶下方加裝單層或多層振動篩及加裝大塊物料返料保送帶,可完成單臺機組破裂加工成一種或多種及格砂石骨料。該破裂站也能夠同時搭配一臺挪動顎式破裂站和一臺挪動篩分站共同功課,可完成高產量和高規范的多種沙石骨料的出產需要。

Mainly used in mining, construction, railways, highways, hydropower, bridges and other sand and aggregate flow of crushing operations. In particular to adapt to the narrow site, the rugged mountain work environment. The crushing plant has the advantages of high working efficiency, single operation can realize the one-time processing of large materials into the finished mixture, and the single-layer or multi-layer vibrating sieve can be added under the main conveyor belt of the crushing plant according to the needs of field work Recycling large pieces of material conveyor belt, a single unit can be crushed into one or more qualified gravel aggregate. The crushing plant can also be combined with a mobile jaw crusher station and a mobile screening station to work together to produce a wide range of aggregate products with high throughput and high standards.



LTC錘式挪動破裂站手藝參數

裝備型號 Equipment Model

LTC1416

LTC1618

LTC1820

破裂機 Crusher

型號 Model

PC1400*1600

PC1600*1800

PC1800*2000

進料口尺寸 Feed Opening (mm)

1400*1600

1600*1800

1800*2000

最猛進料粒度 Max Feed Size (mm)


700*700*700

900*900*900

1000*1000*1000

出料口調劑規模 Adjustable Range of Outlet (mm)

?50

?70

?80

處置才能 Capacity (t/h)

150-300

250-400

450-800

機電功率 Output (kw)

200-260

300-400

450-520

給料機 Feeding Machine




型號 Model

ZSF420*110

ZSF420*110

ZSF420*110

履帶 Track

履帶帶寬 Track Width (mm)

500

500

500

最大行走速率 Max Walking Speed (km/h)

1.2

1.2

1.2

履帶長度 Track Length (mm)

4000

4000

4000

履帶軌距 Track Gauge (mm)

3000

3000

3000

保送帶 Conveyor Belt

保送帶尺寸 Conveyor Size (mm)

B=1200/L=9800

B=1400/L=9800

B=1400/L=10300

行走發念頭 Engine

功率 Power (kw)

92

92

92

選裝件 Optional Spares

加大料斗 Large Size Material Hopper

?

?

?

給料機底板 Feeder Floor Plate

?

?

?

料斗襯板 Hopper Liner

?

?

?

皮帶護板 Belt Guard Plate

?

?

?

無線遙控器 Remote Controller

?

?

?

防塵裝配 Dustproof Device

?

?

?

高壓水噴淋管 High Pressure Water Spray Pipe

?

?

?

燃油泵 Fuel Pump

?

?

?
