產物概況

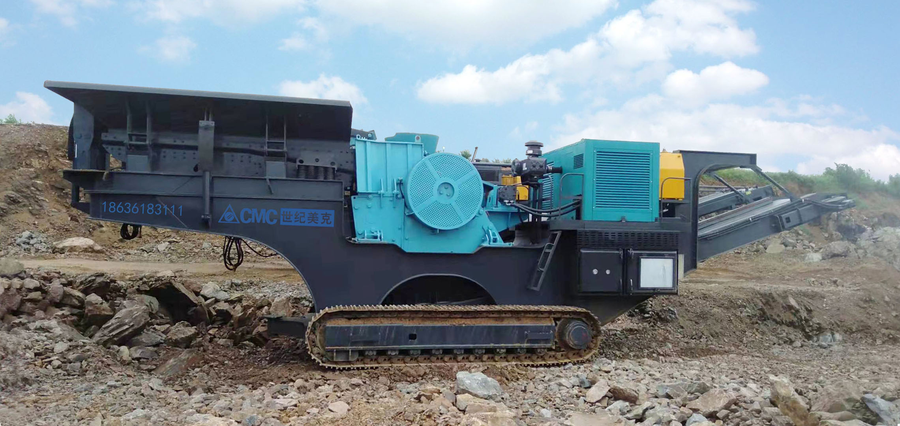

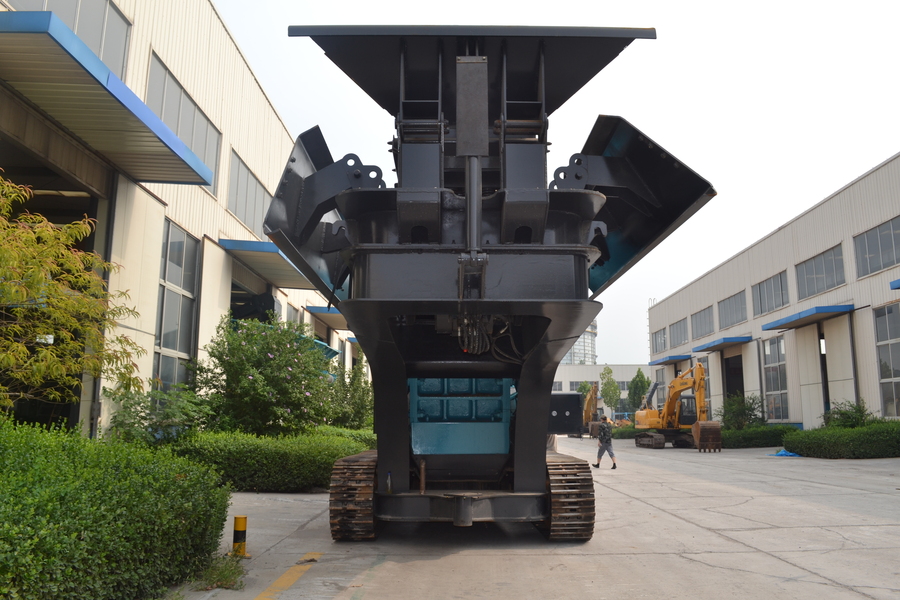

LTE顎式挪動破裂站
產物概況

上風和特色:

Advantages and features:

1、堅忍的布局:模塊式設想,使布局輕盈,抗委靡強度大,耐打擊機能更強;

1. Solid structure: modular design, so that the structure is of lightweight, anti-fatigue strength, more impact resistance;

2、怪異的腔型:接納“V”型對稱破裂腔型設想,破裂腔深,嚙角小,沖程大,使處置才能更大,能耗更低,破裂比更大;

2. Unique cavity type: The symmetrical crushing cavity design of "V" type has the advantages of deep crushing cavity, small nip angle and large stroke, which makes the processing capacity larger, energy consumption lower and crushing ratio larger;

3、優良的動顎總成:動顎總成接納鑄造的重型偏疼軸、高品質重載調心滾子軸承、無限元闡發優化的動顎體,保障了動顎總成耐打擊性和高不變性;迷宮式密封、集合光滑體系確保了軸承油脂不被凈化,使其光滑更有用,不變性更好;

3. High-quality moving jaw assembly: moving jaw assembly forged heavy eccentric shaft, high-quality heavy-duty spherical roller bearings, finite element analysis of the dynamic optimization of the jaw to ensure that the dynamic jaw assembly impact resistance and high Stability; Labyrinth seal, centralized lubrication system to ensure that bearing grease is not contaminated, make it more effective lubrication, better stability;

4、更高的轉速,進步了經由過程量和物料破裂頻次,大大增添了產量;

4. A higher speed, increased throughput and material crushing frequency, greatly increased production;

5、經由過程兩側的楔塊接納機器式或液壓式調劑破裂機排料口,既寧靜靠得住,又節流了停機時候;

5. Through the wedge on both sides using mechanical or hydraulic crusher discharge port, both safe and reliable, but also saves downtime;

6、一體化機電裝配,電念頭座與破裂機架一體裝配削減了破裂機空間和三角帶長度;

6. The integration of motor installation, the motor base and the installation of crushing rack reduces the crusher space and the length of the V-belt;

7、接納智能化無線遙控裝配,自行履帶行走,可單人遙控操縱高低通俗平板拖車、完成疾速轉場功課。

7. The use of intelligent wireless remote-control device, walking on their own tracks, single remote control up and down ordinary flatbed trailer, to achieve rapid transition operations.

8、操縱AC100TM主動化節制體系,最大水平上削減噎機環境,進步進料效力。

8. Use the market leading AC100TM automation control system to minimize the situation of choking and improve feed efficiency.

裝備操縱:

Application:

1、普遍操縱于各種破裂工藝中的低級破裂;

1. Widely used in various crushing process of primary crushing;

2、各種礦山巖石的破裂;

2. All kinds of rock crushing mine;

3、修建燒毀物,如衡宇拆遷、途徑混凝土的輪回操縱破裂;

3. Construction waste, such as housing demolition, road recycling of concrete broken;

4、煤礦及其余行業的破裂;

4. Broken coal and other industries;



LTE顎式挪動破裂站手藝參數

裝備型號 Equipment Model

LTE69

LTE912

LTE1215

破裂機 Crusher

型號 Model

PE600*900

PE900*1200

PE1200*1500

進料口尺寸 Feed Opening (mm)

600*900

900*1200

1200*1500

最猛進料粒度 Max Feed Size (mm)


500*500*500

750*750*750

1020*1020*1020

出料口調劑規模 Adjustable Range of Outlet (mm)

65-160

95-165

150-300

處置才能 Capacity (t/h)

70-120

220-380

400-800

機電功率 Output (kw)

75

130

200

給料機 Feeding Machine

型號 Model

ZSF400*110

ZSF600*130

ZSF600*150

保送帶 Conveyor Belt

保送帶尺寸 Conveyor Size (mm)

B=800/L=9800

B=1200/L=9800

B=1400/L=9800

履帶 Track

履帶帶寬 Track Width (mm)

500

500

500

最大行走速率 Max Walking Speed (km/h)

1.2

1.2

1.2

履帶長度 Track Length (mm)

4000

4000

4000

履帶軌距 Track Gauge (mm)

3000

3000

3000

行走發念頭 Engine

功率 Power (kw)

92

92

92

選裝件 Optional Spares

加大料斗 Large Size Material Hopper

?

?

?

給料機底板 Feeder Floor Plate

?

?

?

料斗襯板 Hopper Liner

?

?

?

皮帶護板 Belt Guard Plate

?

?

?

無線遙控器 Remote Controller

?

?

?

防塵裝配 Dustproof Device

?

?

?

高壓水噴淋管 High Pressure Water Spray Pipe

?

?

?

燃油泵 Fuel Pump

?

?

?
